Product Description

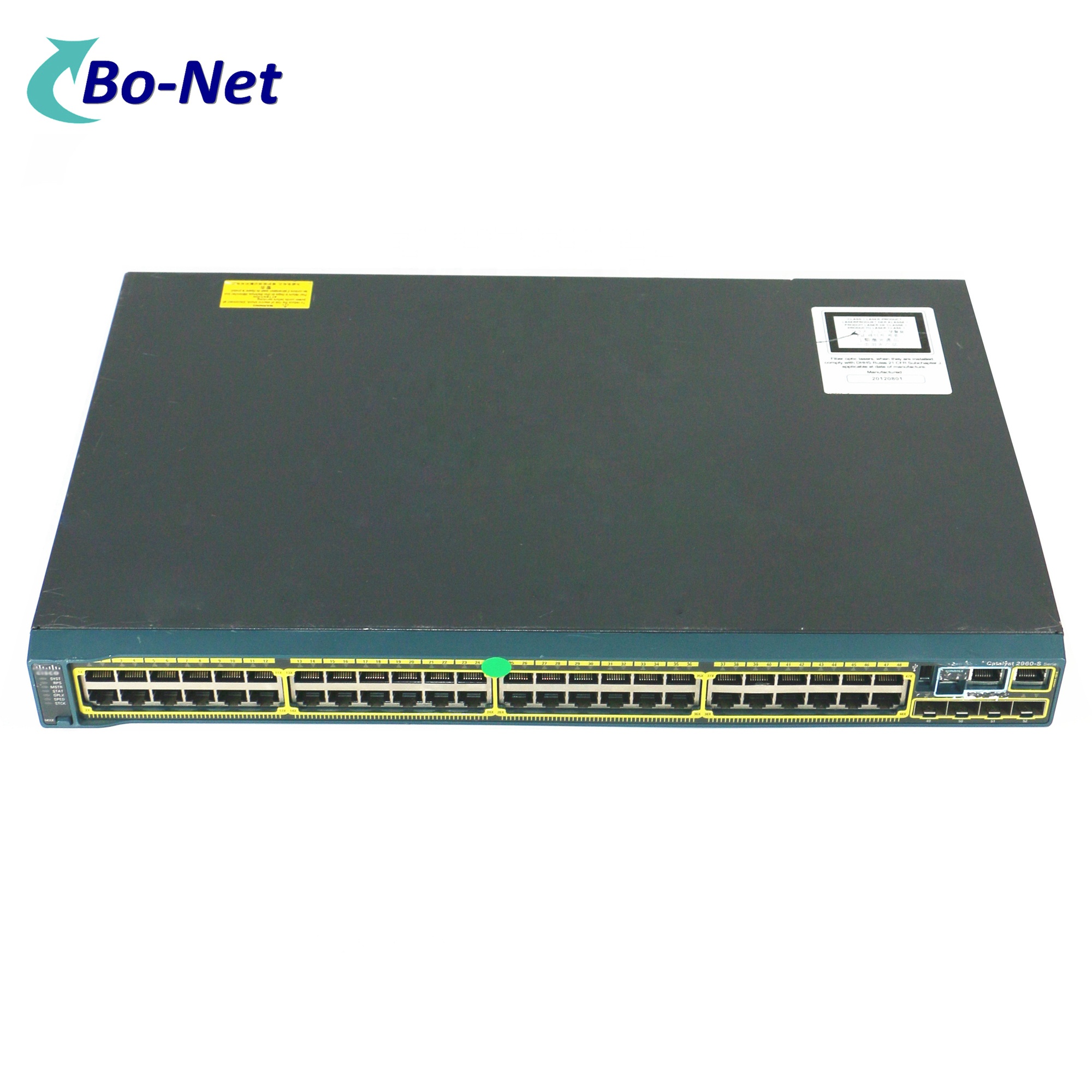

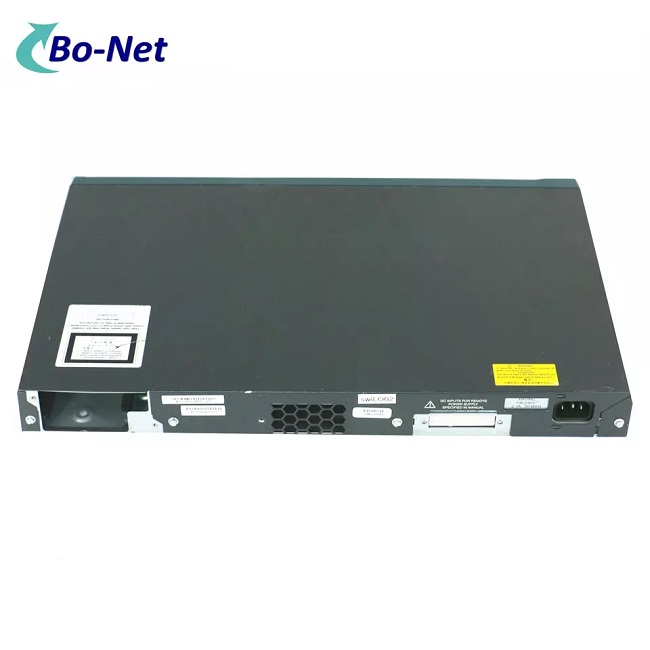

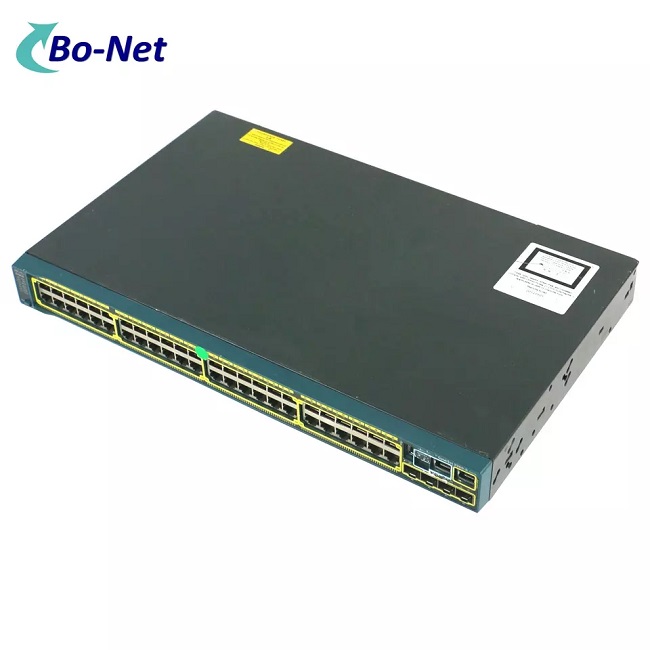

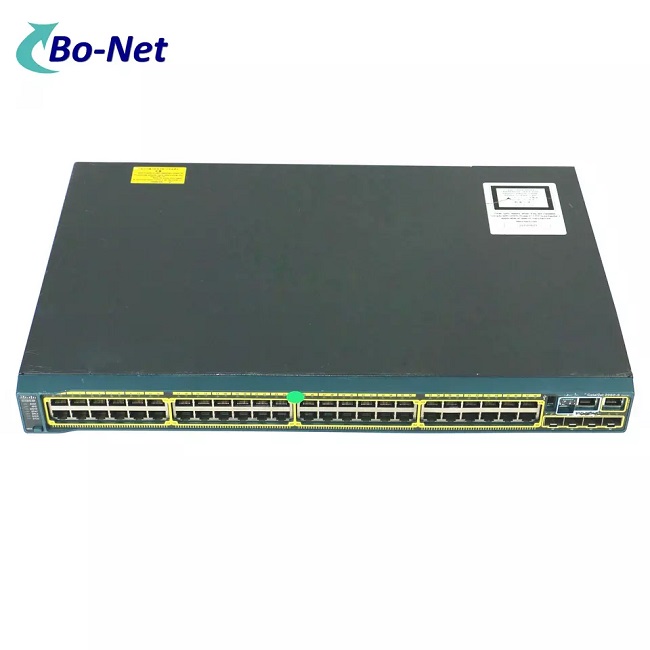

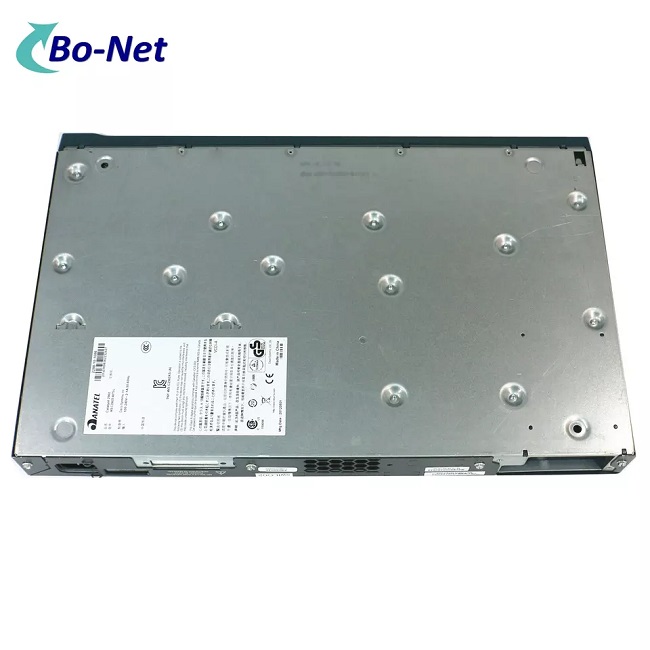

 network switch 2960S-48TS-L - switch - 48 ports

Device Type

Switch

Form Factor

Rack-mountable - 1U

Dimensions (WxDxH)

44.5 cm x 29.9 cm x 4.5 cm

Weight

4.5 kg

RAM

128 MB

Flash Memory

64 MB

Ports Qty

48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T

Data Transfer Rate

1 Gbps

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Empty Slots

4 x SFP (mini-GBIC)

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, FTP, TFTP, SSH-2

Communication Mode

Half-duplex, full-duplex

Features

Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Per-VLAN Spanning Tree Plus (PVST+)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

Power

AC 120/230 V ( 50/60 Hz )
