MOQ500
-
Price3 / Piece
-
Product Code78
-
CategoryAuto Electrical System

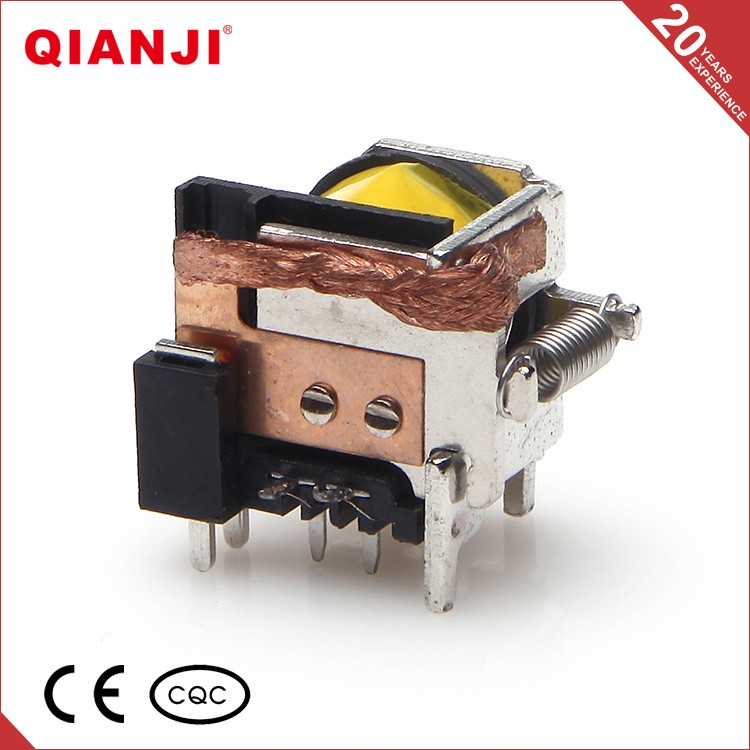

QIANJI China Suppliers 4119 12 Volt Automotive Starter Electronics Relay
Product Description
Contact Ratings
| Contact Ratings | 1A,1C |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | AgCdO |
| Contact Capacity | 30A/40A 14VDC |
Specification
| Insulation Resistance | 1000MΩ.500VDC |
| Dielectric Strength | BCC 750 1 min |
| BOC 750 1 min | |
| Operate Time | 10ms/10ms |
| Terminal Type | PCB |
Coil Ratings
| Nominal Coil Power | 1.6W,1.9W |
Coil Versions
| Nominal Voltage VDC | Coil Resistance at 20℃±10% (Ω) | Max Operate Voltage(VDC) | Min Release Voltage (VDC) | Max Applicable Voltage (VDC) | |
| 1.6W | 1.9W | ||||
| 3 | 5.7 | 4.8 | 1.95 | 0.3 | 3.9 |
| 5 | 15.7 | 13.2 | 3.25 | 0.5 | 6.5 |
| 6 | 22.5 | 19.0 | 3.90 | 0.6 | 7.8 |
| 9 | 50.7 | 42.7 | 5.85 | 0.9 | 11.7 |
| 12 | 90.0 | 75.8 | 7.80 | 1.2 | 15.6 |
| 24 | 360.0 | 303.2 | 15.60 | 2.4 | 31.2 |

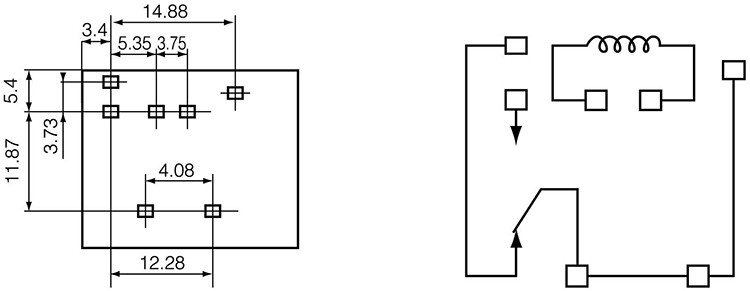

Dimension.Botton View
Reference Data
Packaging & Shipping
Packaging Details:Standard export packing
Delivery Detail:15-25 days
