MOQ500
-
Price3 / Piece
-
Product Code79
-
CategoryAuto Electrical System

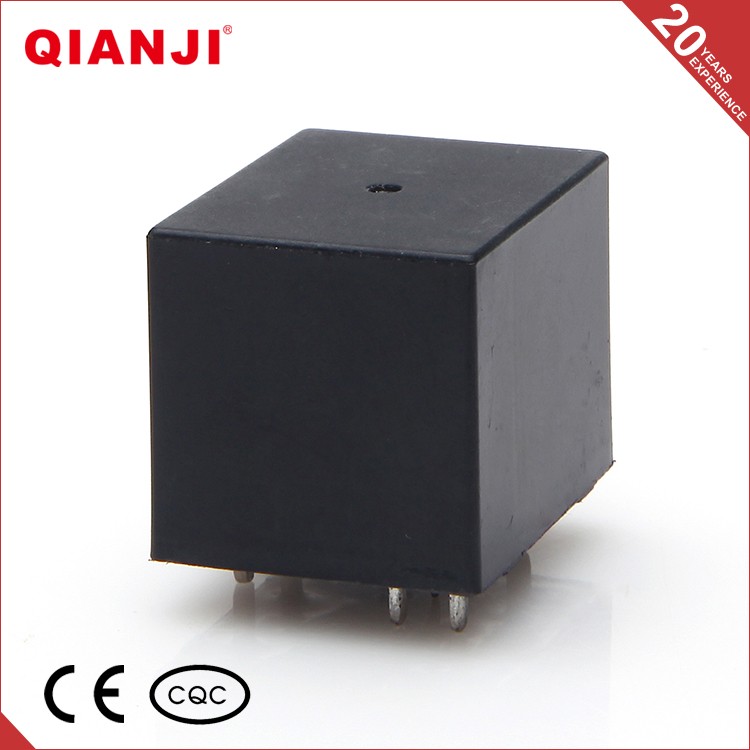

QIANJI China Suppliers Automobile Auto Relay Car Relay 24V 40A 5pin
Product Description
Features:
1.40A switching capability
2.1 form A,1 form C contact form
3.PCB terminals
3.Two terminal equipped with n and European size

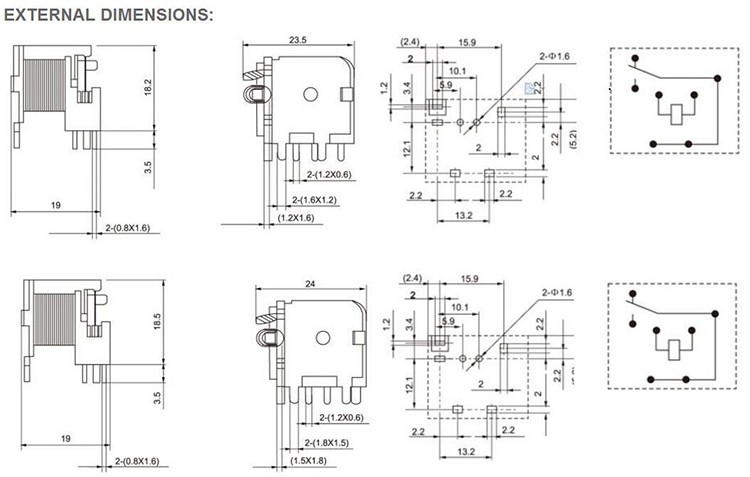

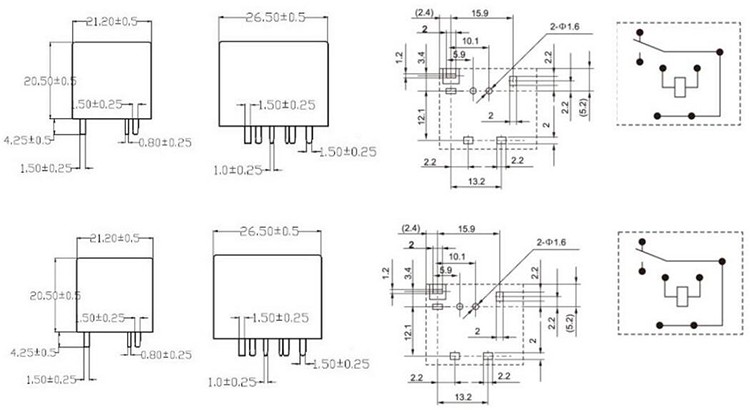

4.Outline dimensions:25.5 X21.0X21.0
Specification
| Contact Form | 1A,1C |
| Contact Material | AgSno2 |
| Max.Operating Current | 40A |
| Max.Operating Voltage | 27VDC |
| Rated Load(Resistance Load) |
1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength(Coil and Contact) | 500VAC |
| Ambient Temperature | -40℃~+85℃ |
| Operated/Relese Time | 10ms/10ms |
| Mechanical Life | 1*10^6 |
| Electrical Life (min) | 1*10^5 |
| Terminal Type | PCB |
Coil Ratings
| Standard | Normal Voltage(VDC) | Pick-up Voltage (VDC) | Drop-out Voltage(VDC) | Coil Resistance(Ω±10%) | Parallel Resistance(Q±5%) | Equivalent Resistance(Q±10%) | Power Consumption(W) | Max.alowable overd Voltage(VDC) | |
| 20℃ | 85℃ | ||||||||
| 12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2 | 15.7 | |
| 12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2 | 15.7 | |
| 24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5 | 31.5 | |
| 24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5 | 31.5 | |
Remark:(1)In case of no tolerance shown in outline dimension: outline dimension:1mm, tolerance should be ±0.2mm; Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm, tolerance should be ±0.4mm.
Packaging & Shipping
Packaging Details:Standard export packing
Delivery Detail:15-25 days
Company Information
Yueqing Qianji Relay Co,.Ltd is a modern and professional enterprise reseaching,developing,
producing,and selling relays.
Over 20 years,it has always stuck to enterprise spirit pf basing on credit,factualism and innovation,
pursuing excellence,with the absolute advantage of product performance and quality,it becomes one of the great companies in the relay industry.
Company professionally produces more than 50series and more than 1000 specifications for Qianji production technology,testing equipment,scientific managment and effective,in order to provide a reliable production line.Further more,the company has obtained ISO9001 international quality system certification,the products have been approved the nontoxic and environmental protection test;some products have passed CE certification,CQC certification.We have the agents in Chian,and export the relays to Middle East,South America,Southeast Asia,Taiwan,Korea,Australia,Europe and Amercia country;they are always popular with at home and aborad customers.
Face to the challenges of the technology and the market competition,we are insist on the strategy of "Technology Innovation,Quality-oriented,based on domestic market and world market development" Best quality and excellent serive.
Looking forward to cooperat with you sincerely, create a better tommorw together!
Zhejiang Qianji Relay Co., Ltd.
China
